Video Nkag Xov Tooj
* Nqe sij hawm: FOB Zhuhai, Suav
* Kev pabcuam OEM / ODM: Txais tau
* Lub sij hawm xa tuaj: 3-5 hnub ua haujlwm tom qab tau txais cov nyiaj them poob haujlwm rau cov qauv txiav txim, 20-30 hnub ua haujlwm rau kev txiav txim siab nruab nrab, 30-40 hnub ua haujlwm rau OEM xaj
* Kev Them Nyiaj: T / T, paypal, Western Union
Khoom Taw qhia
Video Nkag Xov Tooj

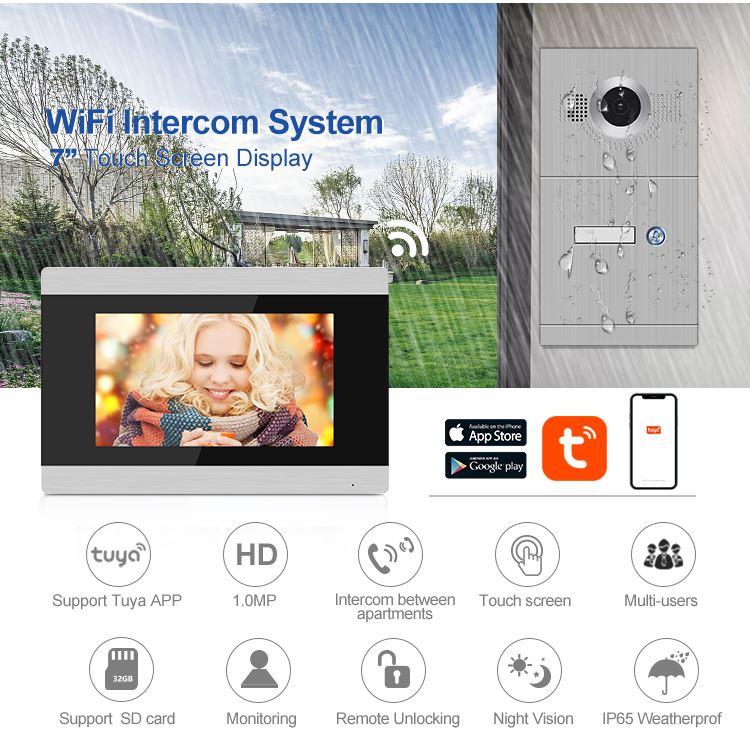

Video nkag xov tooj yog IP video qhov rooj xov tooj system rau cov tsev. Lub kaw lus txhawb nqa 1-4 chav tsev.
Sab hauv tsev saib yog 7 nti kov npo zaub, chaw nres tsheb sab nraum zoov yog nrog 1 lub khawm hu ncaj qha rau 4 lub khawm hu ncaj qha rau 1/2/3/4 chav tsev siv. Chaw nres tsheb sab nraum zoov yog IP65 tsis muaj dej, thiab chaw nres tsheb sab nraum zoov nrog daim ntawv teev npe, cov neeg siv tuaj yeem sau lawv lub npe rau nws kom cov neeg tuaj saib tuaj yeem paub lub pob twg hu. Cov neeg siv tuaj yeem saib xyuas qhov chaw nres tsheb sab nraum zoov thiab qhib lub qhov rooj thaum saib xyuas.
Cov ntaub ntawv
Tshooj Naj Npawb | 8 7710 tzm |
Zaub screen | 7" TFT LCD kov npo, aluminium ncej |
Txhais | 7" (1024 x 600 pixels) |
CCTV koob yees duab input | 960P |
Kev ua haujlwm system | Embedded Linux Operation System |
Processor | Embedded MCU Processor |
Hu rau hom | Ob txoj kev sib tham |
Lub sijhawm hu | 120s |
Standby tam sim no | Qhov siab tshaj 250mA |
Ua haujlwm tam sim no | Ntau tshaj 600mA |
Fais fab mov | 15 VDC/PoE (IEEE 802.3af) |
Ua haujlwm kub | 0~+50°C |
Kev teeb tsa | Nto mount |
Daim duab hom | JPEG txheem hom |
MicroSD daim npav (max 32GB) (> Class 10) | Tsis muaj khoom |
Qhov Loj (L x W x D) | 190 x 120 x 21.5 mm |
Ethernet | 10/100 Mbps Self-Adaptive Ethernet |
Kev cai tom qab | Yog (Daim duab hauv qab los ntawm MicroSD daim npav thaum nruab) |
Tshooj Naj Npawb | 87214 |
Qhov ntev | 210 * 116 * 36mm |
Saib lub kaum sab xis | 110 ° dav lub koob yees duab |
Lus Txhais (Hor.) | 960P |
LEDs rau hmo ntuj pom kev | Dawb LEDs Ntxiv |
Kev siv fais fab | 150mA max. |
Lub zog | 15 VDC/PoE (IEEE 802.3af) |
Kev ua haujlwm temp. | -40~+50ºC |
Ua haujlwm av noo | 10% txog 95% |
Kev teeb tsa | Nto mount / Flush mount |
Xauv | N / O, N / C Hu rau (30VDC 2A) |
Ingress Protection Rating | IP65 |
Specification:
Chaw nres tsheb sab hauv
Peb muaj ntau hom lus rau kev xaiv, yog tias muaj lus me me yuav tsum tau ntxiv, peb tuaj yeem muab cov ntaub ntawv Askiv version rau koj los txhais lus rau koj cov lus thiab peb tuaj yeem ua firmware nrog koj cov lus. Koj tuaj yeem teeb lub suab nrov ntawm chaw nres tsheb sab nraum zoov los ntawm kev saib sab hauv tsev. Thiab tag nrho cov chav tsev yog teem los ntawm sab hauv tsev saib, peb yuav muab cov yeeb yaj duab thiab cov lus qhia rau koj los qhia koj yuav ua li cas rau configure lawv. Cov saib sab hauv tsev tuaj yeem siv nrog Bcomtech txhua qhov chaw nres tsheb IP sab nraum zoov, tsis hais lub tsev villa lossis chav tsev.
a. 7" Capacitive Touch Screen, peb kuj muaj 10 nti rau kev xaiv
b. Ua hauv Standard PoE hauv (802.11af)
c. Muaj SD daim npav qhov nyob rau sab xis ntawm sab hauv tsev saib, uas tuaj yeem txhawb 32G SD Card khaws cov yees duab, suab thiab snapshot.
d. Ua hauv WiFi module, muaj feem xyuam rau ob qho tib si Android thiab iOS system.
e. Ntau hom lus rau kev xaiv
f. Hu rau ntim, hais lus ntim, ringtones tuaj yeem hloov kho
Chaw nres tsheb sab nraum zoov
Qhov chaw nres tsheb sab nraum zoov yog aluminium alloy vaj huam sib luag nrog 110 ° wide-angle lens. Cov qauv no yog rau 1- 4 chav tsev siv, thiab nws tuaj yeem siv nrog Bcomtech txhua tus IP saib hauv tsev.
a. 960P Duab Sensor
b. Siv CAT5 / CAT6 LAN cables txuas rau PoE hloov, thiab nws tuaj yeem siv los ntawm PoE hloov
c. IP65 Waterproof theem, nto mount thiab flush mount rau kev xaiv
System Diagram
Cov saib sab hauv tsev thiab sab nraum zoov chaw nres tsheb txuas nrog ib qho PoE swtich, thiab yog tias koj xav ntxiv IP koob yees duab rau sab hauv tsev montors rau kev saib xyuas, koj tuaj yeem txuas lub koob yees duab IP rau PoE swtich, ib yam nkaus. Thiab txhua tus tswv hauv tsev saib kev txhawb nqa txuas mus rau 8 sensors.
Ntim:
Cov ntim nruab nrab, tuaj yeem ntim raws li cov neeg siv khoom xav tau.
F& Q:
Q: Koj puas txais OEM& ODM?
A: Yog, peb txais. Yog xav paub ntxiv, tsuas yog tiv tauj peb.
Q: Kuv tsis paub cov khoom kom meej, kuv tuaj yeem nruab nws li cas?
A: Peb muaj cov neeg siv phau ntawv nrog cov khoom thiab peb tuaj yeem xa koj cov vis dis aus yog tias koj xav tau.
Q: Kuv tuaj yeem ua li cas yog tias muaj qee qhov yuam kev nrog cov khoom?
A: Tseeb, peb muaj ua tiav pab pawg tom qab muag rau cov neeg siv khoom txawv teb chaws. Peb tuaj yeem pab koj los ntawm cov duab thiab video hu.
Q: Lub sijhawm khoom xa tuaj ntev npaum li cas?
A: Feem ntau hauv 3-5 hnub ua haujlwm rau cov qauv txiav txim, lub sijhawm txiav txim ntau nyob ntawm qhov ntau.
Cim npe nrov: video nkag xov tooj, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, kev cai, nyob rau hauv Tshuag
