Qhov Rooj Xov Tooj Rau Tsev

* IP video qhov rooj intercom rau ntau chav tsev
* Tuya App chaw taws teeb tswj rau kev hais lus, xauv, saib xyuas, thiab lwm yam
* Txhawb PoE hloov hluav taws xob, yooj yim dua rau kev teeb tsa
* Txog li 32G SD daim npav nco rau cov ntaub ntawv video lossis snapshot
* Anti vandal thiab xeb pov thawj hlau chaw nres tsheb sab nraum zoov

Xa kev nug

Khoom Taw qhia

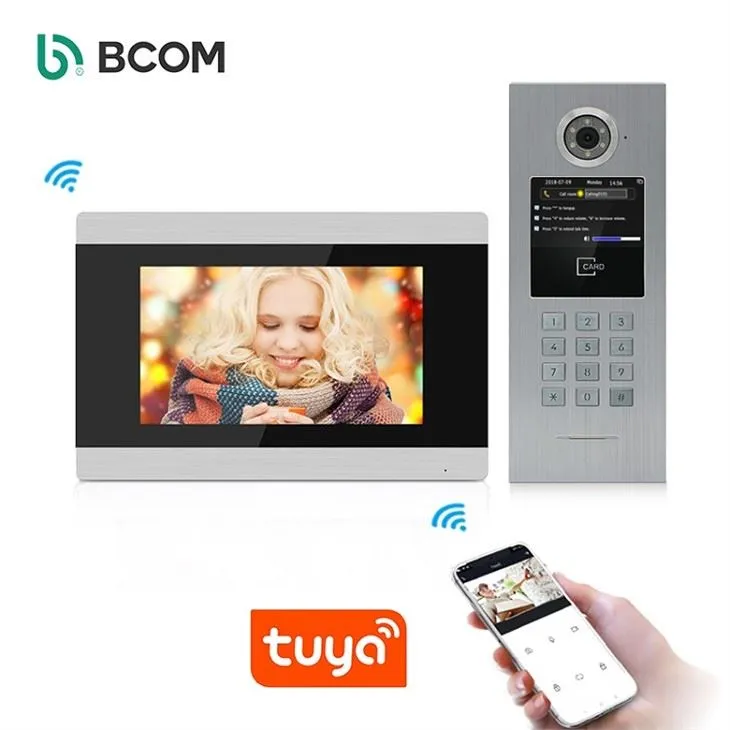

Qhov Rooj Xov Tooj rau Lub Tsev no yog tsim los siv rau hauv ib lub tsev Multi-chav tsev niaj hnub. Lawv siv CAT5 / CAT6 cable txuas. Nrog PoE module sab hauv, lawv tuaj yeem siv los ntawm PoE hloov. Li no, lub installation yog heev yooj yim thiab ceev. Qhov chaw nres tsheb sab nraum zoov yog nrog lub vaj huam sib luag hlau muaj zog, tiv thaiv kev cuam tshuam thiab xeb pov thawj, thiab nws muaj RFIC daim npav thiab lo lus zais nkag muaj nuj nqi, thaum, nws tseem tuaj yeem xauv los ntawm kev saib sab hauv tsev lossis ntse Tuya App chaw taws teeb tswj. Tus saib sab hauv tsev yog 7 nti kov npo, nrog WiFi module sab hauv. Nws muaj kev ruaj ntseg tswb muaj nuj nqi thaum txuas nrog sensors pa luam yeeb, roj, dej, thiab lwm yam.

1. Building IP Video Intercom for Apartments

Khoom Specification:

Tshooj No.	8 7710 tzm
Saib xyuas	7 "TFT LCD kov npo
Kev daws teeb meem	1024 x 600 pixels
raws tu qauv	SIP
Intercom hom	Kev sib txuas lus duplex tag nrho
Intercom ntev	120s
Ua haujlwm tam sim no	Max. 400 mA
Qhov system muaj peev xwm	Tsis txwv cov chav nyob sab hauv tsev thiab sab nraum zoov
Kev sib txuas	CAT5/CAT6 kab
Fais fab mov	los ntawm PoE hloov
Ua haujlwm kub	-10~+60°C
Txoj Kev Txhim Kho	Nto mount
Daim duab Format	JPEG txheem hom
Nco	Txhawb nqa max. 32GB (> Chav Kawm 10; tsis suav nrog)
Qhov Loj (WxH)	212 x 144 mm

Tshooj No.	87202S-K
Saib lub kaum sab xis	90°
Pixels	1.0 MP
Hmo Ntuj Pom Kev	IR LED teeb (120 °)
Keypad	Lub cev khawm rau kev qhib lo lus zais
Daim npav	RFIC daim npav rau kev xauv
Kev siv fais fab	200mA max.
Kev ua haujlwm Temp.	-40~+50ºC
Txoj Kev Txhim Kho	Flush mount
Xauv	Electronic / Magnetic Lock
Waterproof Resistance	IP65
Dimension（WxH)）	140 x 365 mm

Product Advantages:

1.7 "kov screen, hlau vaj huam sib luag

2.Monitor nrog WiFi module, txhawb nqa lub xov tooj ntse Tuya App chaw taws teeb tswj

3.Security tswb nrog sensors rau 8 qhov chaw sib txawv xws li roj, dej, pa luam yeeb, thiab lwm yam

4.Strong hlau sab nraum zoov chaw nres tsheb, anti-vandal thiab xeb pov thawj

5.Easy txhim kho PoE hloov fais fab mov system

6.Unlimited system muaj peev xwm

7.RFIC daim npav& code nkag

2. Tuya Remote Control Video Door Phone

Khoom Paub meej:

Qhov Rooj Xov Tooj rau Lub Tsev no yog qib siab tsim los ua kom tau raws li txhua yam ntawm cov tsev tsev.

3. Apartments Video Doorbell

Daim ntawv teev npe

Qhov Rooj Xov Tooj rau Lub Tsev no yog nrog cov khoom siv txuas ntxiv kom txuag tau tus neeg siv khoom tus nqi thiab sijhawm.

3. Apartments Video Doorbell

Packing List:

Qhov Rooj Xov Tooj rau Lub Tsev no yog nrog cov khoom siv txuas ntxiv kom txuag tau tus neeg siv khoom tus nqi thiab sijhawm.

System Wiring Diagram:

Ntawm CAT5 / CAT6 network txuas mus rau PoE hloov, Qhov Rooj Xov Tooj no rau Lub Tsev Siv Hluav Taws Xob txhawb nqa ib lub chaw nres tsheb sab nraum zoov kom txuas tau ntau tus saib, ib tus saib txuas ntau qhov chaw nres tsheb. Yog li cov tshuab muaj peev xwm tsis txwv.

5. Tuya Video Intercom

Ntawv pov thawj:

Txhua lub xov tooj ntawm Bcomtech lub rooj sib tham video yog los nrog CE, FCC, Rosh, RED thiab EACmeeting tso cai nkag mus rau kev lag luam sib txawv.
